About this item

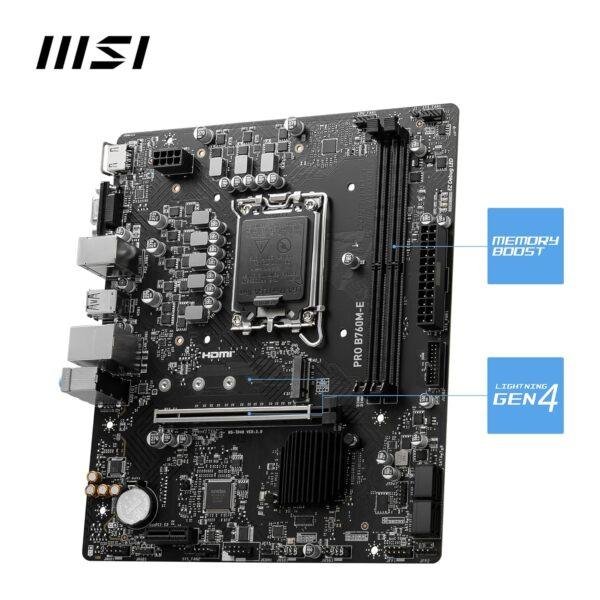

• 12TH & 13TH GEN CORE – The PRO B760M-E is a compact Micro-ATX motherboard outfitted with the latest Intel B760 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance
• PASSIVE & AI COOLING – A chipset heatsink provides passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
• DDR5 MEMORY, PCIe 4.0 x16 SLOT – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 5600 MHz); The PCIe x16 slot supports PCIe 4.0 (64GB/s) graphics cards and includes Steel Armor
• GEN4 M.2 CONNECTOR – Storage options include 1 x M.2 Gen4 x4 64Gbps slot for hyper-fast SSD access

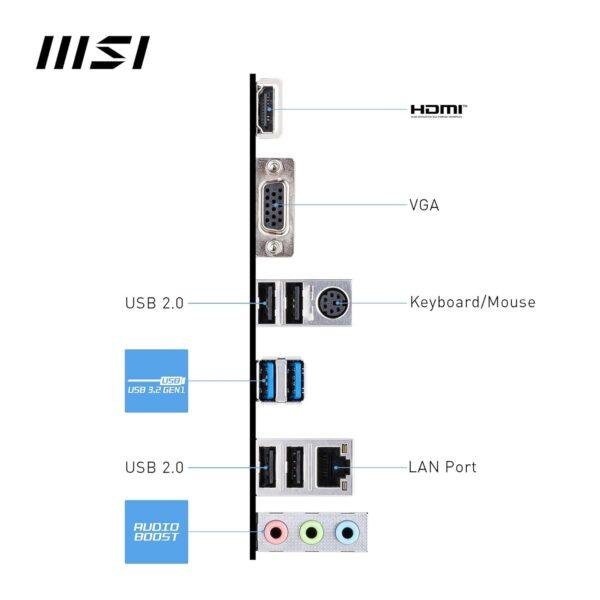

• WELL CONNECTED – Network hardware includes a 1Gbps LAN controller; Rear ports include USB 3.2 Gen 1 Type-A (5Gbps), HDMI 1.4 and VGA, and 7.1 HD Audio with Audio Boost


  Technical Details

  Brand	‎MSI
  Manufacturer	‎MSI, Micro-Star INT’L CO., LTD. No.69, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan
  Series	‎PRO B760M-E
  Item Height	‎20 Millimeters
  Item Width	‎20 Centimeters
  Product Dimensions	‎23.6 x 20 x 2 cm; 710 g
  Item model number	‎7D48-020R
  Processor Socket	‎LGA 1700
  Memory Technology	‎DDR5
  Maximum Memory Supported	‎64 GB
  Memory Clock Speed	‎6400 MHz
  Graphics Card Interface	‎PCI Express
  Connectivity Type	‎Wi-Fi
  Number of USB 2.0 Ports	‎2
  Number of HDMI Ports	‎2
  Number of Ethernet Ports	‎1
  Manufacturer	‎MSI
  Country of Origin	‎China
  Item Weight	‎710 g
